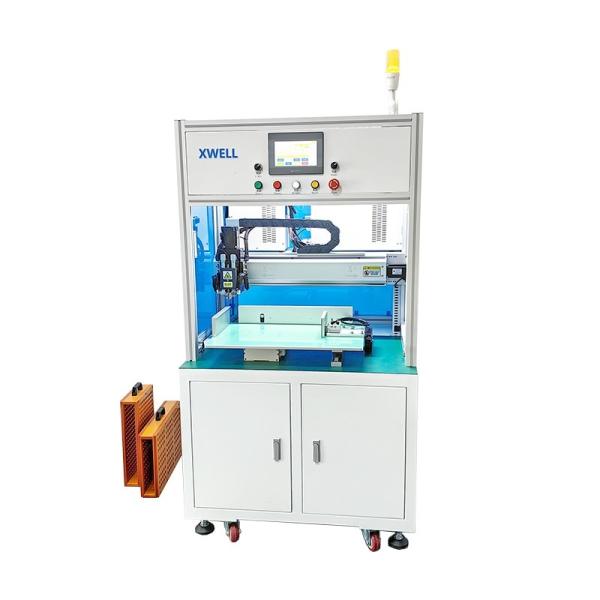

Automatic Single Side Spot Welding Machine For Cylindrical Battery Pack
Advantages:
1. Welding stroke can be customized
2. Suitable for various kinds of battery pack
3. High speed welding
4. 7-inch touch screen, more convenient operation, clearer display
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.
6. Can store up to 999 groups of files, the file issimple to call,
Battery Spot Welding Machine Features
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
